The Shellplate with Bearing for Dillon Super 1050 in 9 mm Luger is a precision upgrade featuring surface and cylindrical grinding (parallelism ±0.005 mm), improved case guidance, and perpendicularity of the lock nut seating surface (runout ±0.01 mm).
More
Shellplate with Bearing for Dillon Super 1050 9 mm Luger – Upgrade for Your Reloading Press
The Shellplate with Bearing for Dillon Super 1050 9 mm Luger is a premium upgrade designed to deliver maximum smoothness, precision, and efficiency during the reloading process. Manufactured using advanced technologies and featuring innovative design improvements, it offers significant enhancements over the standard part.
Key Features:
- High-Precision Manufacturing: All functional surfaces of the shellplate are ground using a combination of surface and cylindrical grinding, ensuring parallelism with a tolerance of ±0.005 mm (“in the hundredths”).
- DLC Coating: The Diamond-Like Carbon (DLC) coating provides exceptional hardness, wear resistance, and smooth operation.
- Improved Case Guidance: The optimized design of the shellplate’s positions facilitates easier and more accurate case guidance into the correct position, reducing the risk of errors during reloading.

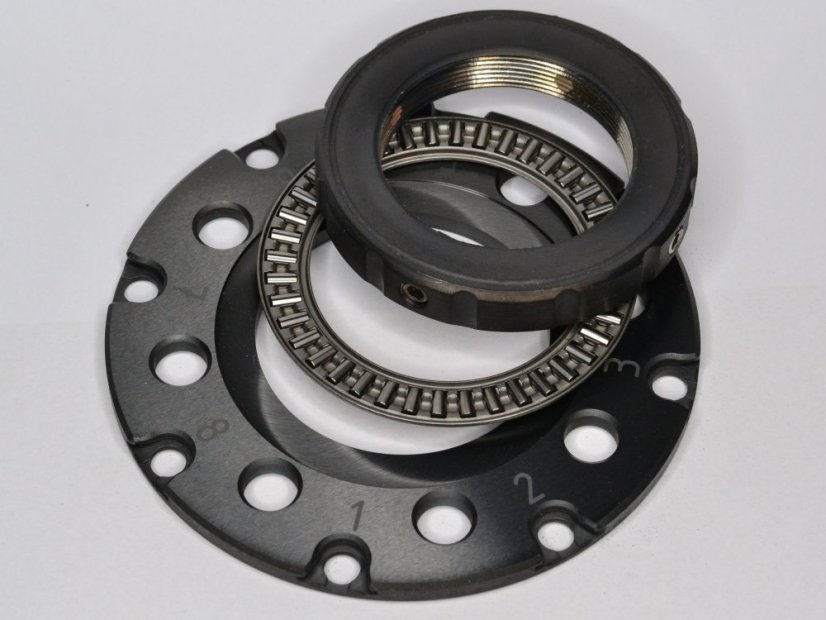

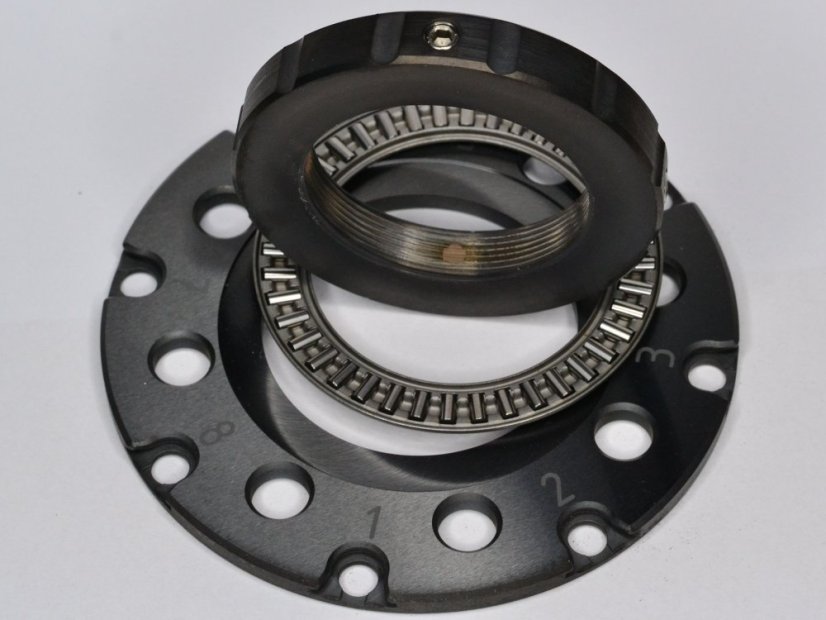

- CNC Precision Lock Nut: The lock nut is CNC-machined and subsequently surface-ground to achieve a high-quality finish on the functional seating surface. The manufacturing process ensures perfect perpendicularity of the seating surface to the thread, with a runout tolerance of ±0.01 mm.

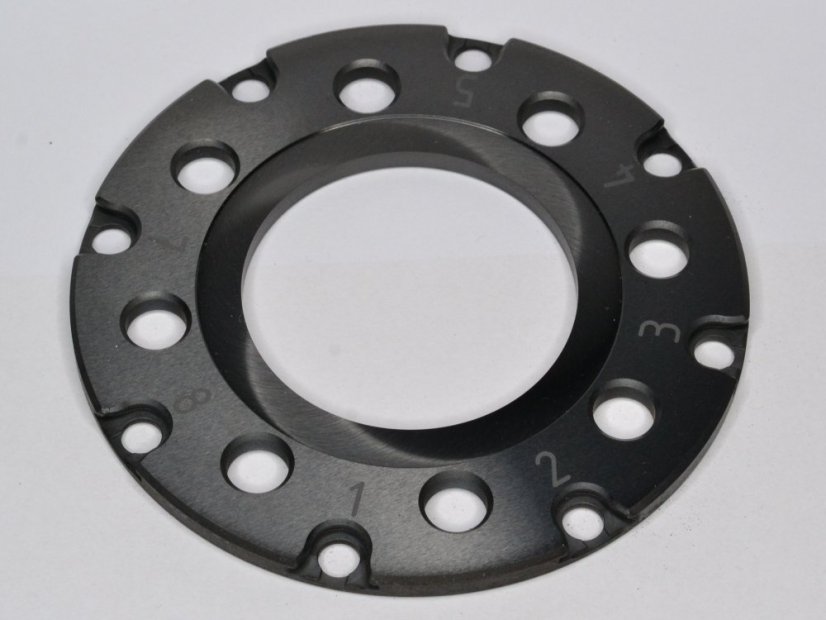

- Laser Marking: Each position on the shellplate is laser-marked for easy identification during reloading.

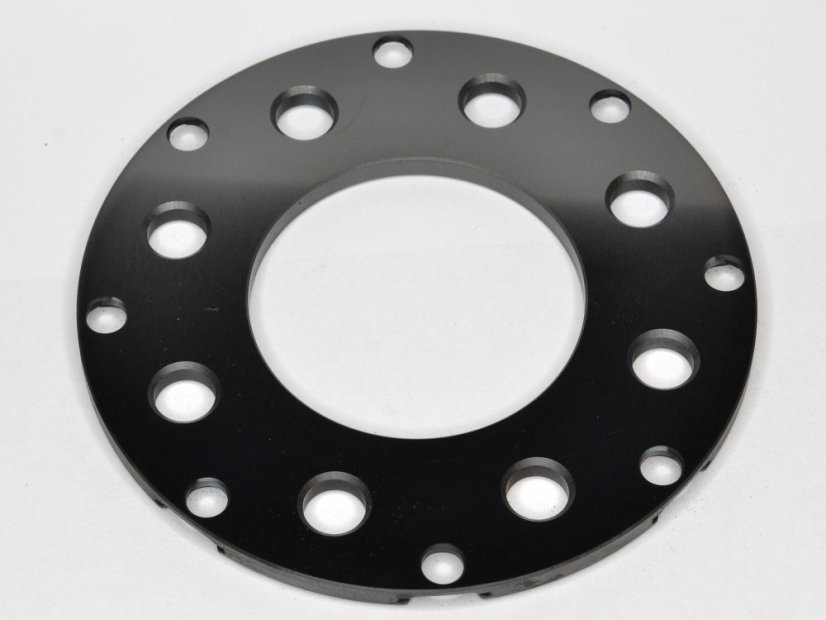

- Optimized Design: The base of each position includes only the necessary holes for primer removal and seating, increasing strength and extending the shellplate’s lifespan.
Manufacturing Technology:
- Surface and Cylindrical Grinding: This process ensures the highest level of precision and quality for all critical functional surfaces, minimizing wear and ensuring optimal performance.
- CNC Turning and Surface Grinding: The lock nut is meticulously machined to maintain precise perpendicularity between the seating surface and the thread.
Installation and Compatibility:
This upgrade is fully compatible with the Dillon Super 1050 press and requires no modifications. For optimal performance, it is recommended to thoroughly clean the area beneath the shellplate before installation.
